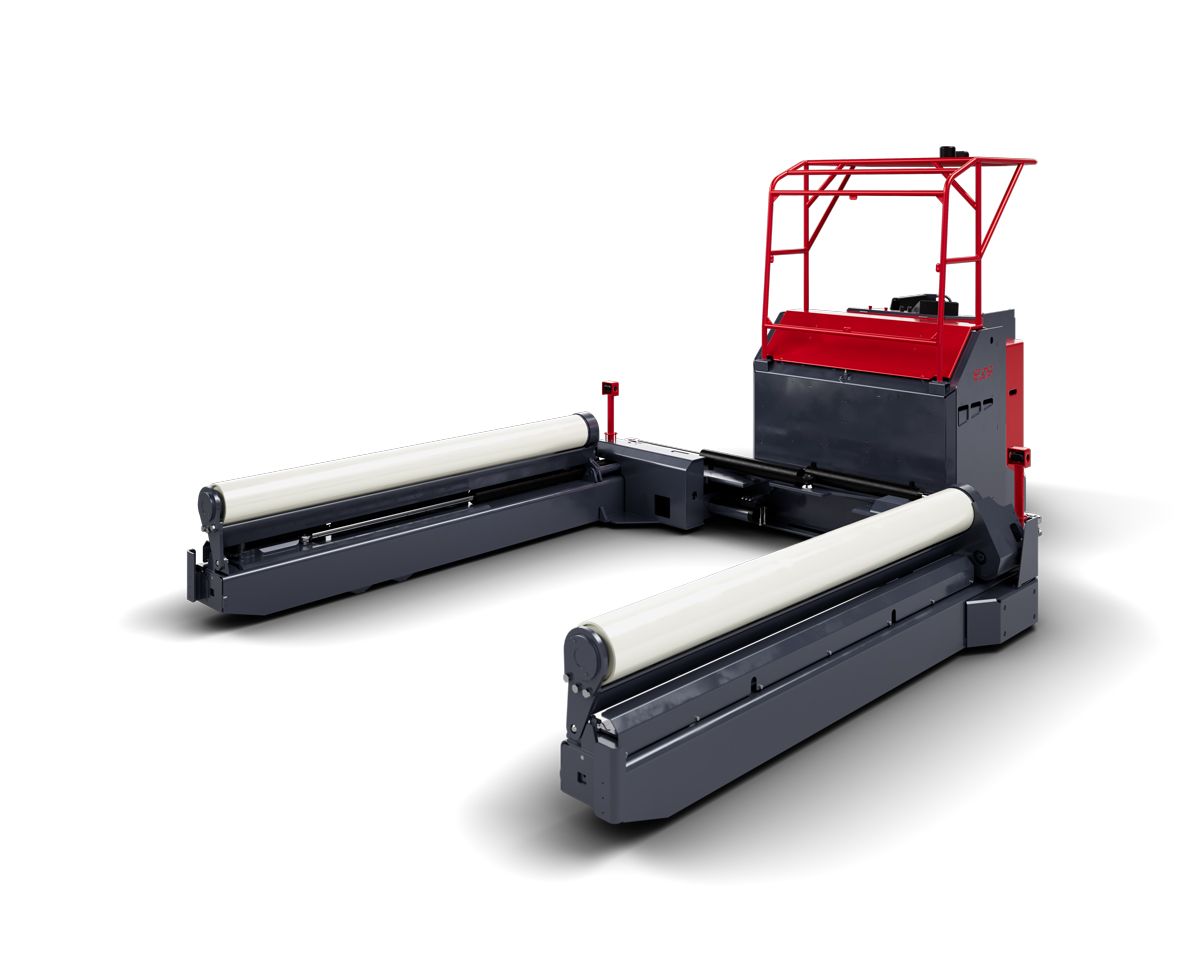

High-Capacity Cable Drum Handlers – Electric Transport up to 60 Tons

Move massive cable drums with precision, safety, and zero emissions. Elof Cable Drum Handlers are designed for heavy industry, offering load capacities up to 60 tonnes, flexible driver positions, optional rotation, and advanced camera systems.

Compact, floor-friendly, and fully electric—built to maximize uptime in your cable production.

Key Features

Load capacity: 7 to 60 tonnes
Drum diameter: 800 – 5500 mm
Drum width: 950 – 3800 mm
Battery power: 80 V, up to 660 Ah
Ergonomic driver options: Sitting behind, Standing behind or sitting high
Optional accessories: Rotator for drum rotation, camera monitoring, custom operator stations

Why Choose Elof Cable Drum Handlers?

Up to 60 t load capacity – with a compact footprint
Electric drive, emission-free – quiet, clean and efficient
Minimal floor wear – optimized wheel load distribution
Flexible driver positions – standing, sitting or high-seat operation
Optional rotator and cameras – improved process control and safety
Proven performance worldwide – trusted in cable production facilities across Europe and beyond

Model Overview Cable Drum handlers

model	max load	power battery	drum diameter mm	drum width mm	driver position	driver position label
C07110	7 t	80 V, 250 Ah	800 - 1800	up to 2000	STB	Standing behind the drive unit
C07120	7 t	80 V, 250 Ah	800 - 1800	up to 2000	SIB	Sitting behind the drive unit
C08110	8 t	80 V, 250 Ah	1600 - 2600	up to 1600	STB	Standing behind the drive unit
C08120	8 t	80 V, 250 Ah	1600 - 2600	up to 1600	SIB	Sitting behind the drive unit
C15110	15 t	80 V, 250 Ah	1250 - 2500	950 - 2120	STB	Standing behind the drive unit
C15120	15 t	80 V, 250 Ah	1250 - 2500	950 - 2120	SIB	Sitting behind the drive unit
C20310	20 t	80 V, 660 Ah	1250 -3000	1000 - 2120	STB	Standing behind the drive unit
C20320	20 t	80 V, 660 Ah	1250 -3000	1000 - 2120	SIB	Sitting behind the drive unit
C20330	20 t	80 V, 660 Ah	1250 -3000	1000 - 2120	SIT	Sitting on high drive unit
C30310	30 t	80 V, 660 Ah	2000 - 4500	1350 - 2700	STB	Standing behind the drive unit
C30320	30 t	80 V, 660 Ah	2000 - 4500	1350 - 2700	SIB	Sitting behind the drive unit
C30330	30 t	80 V, 660 Ah	2000 - 4500	1350 - 2700	SIT	Sitting on high drive unit
C50310	50 t	80 V, 660 Ah	2400 - 5000	1600 - 3700	STB	Standing behind the drive unit
C50320	50 t	80 V, 660 Ah	2400 - 5000	1600 - 3700	SIB	Sitting behind the drive unit
C50330	50 t	80 V, 660 Ah	2400 - 5000	1600 - 3700	SIT	Sitting on high drive unit
C60410	60 t	80 V, 660 ah	3800 - 5500	2400 - 3800	STB	Standing behind the drive unit

STB = Standing behind the drive unit, SIB = Sitting behind the drive unit, SIT = Sitting on high drive unit

Benefits for Your Business

Reduce floor damage and repair costs
Improve operator ergonomics and safety
Cut downtime with reliable electric drive
Increase throughput with faster load handling
Lower environmental impact with emission-free operation

Applications

Cable manufacturing plants
Offshore and subsea cable production
Test facilities and cable R&D centers
Heavy industrial logistics hubs

About Elof Handler

For more than 20 years, Elof Handler has been developing patented indoor transport technology that makes heavy load handling easier, safer, and more sustainable. Our Swedish-engineered machines are used worldwide by leading industrial companies that demand reliability and performance.
